Lames de Dénudeur Pneumatique Horizontal - Couteaux Plat, V, Rond

Pneumatic wire stripper blade, 305 horizontal skinning machine various tools, 315 flat knives, V knife round knife, U knife, 310 accessories high-quality pneumatic peeling machine blade die for stripping machine 305,310.315

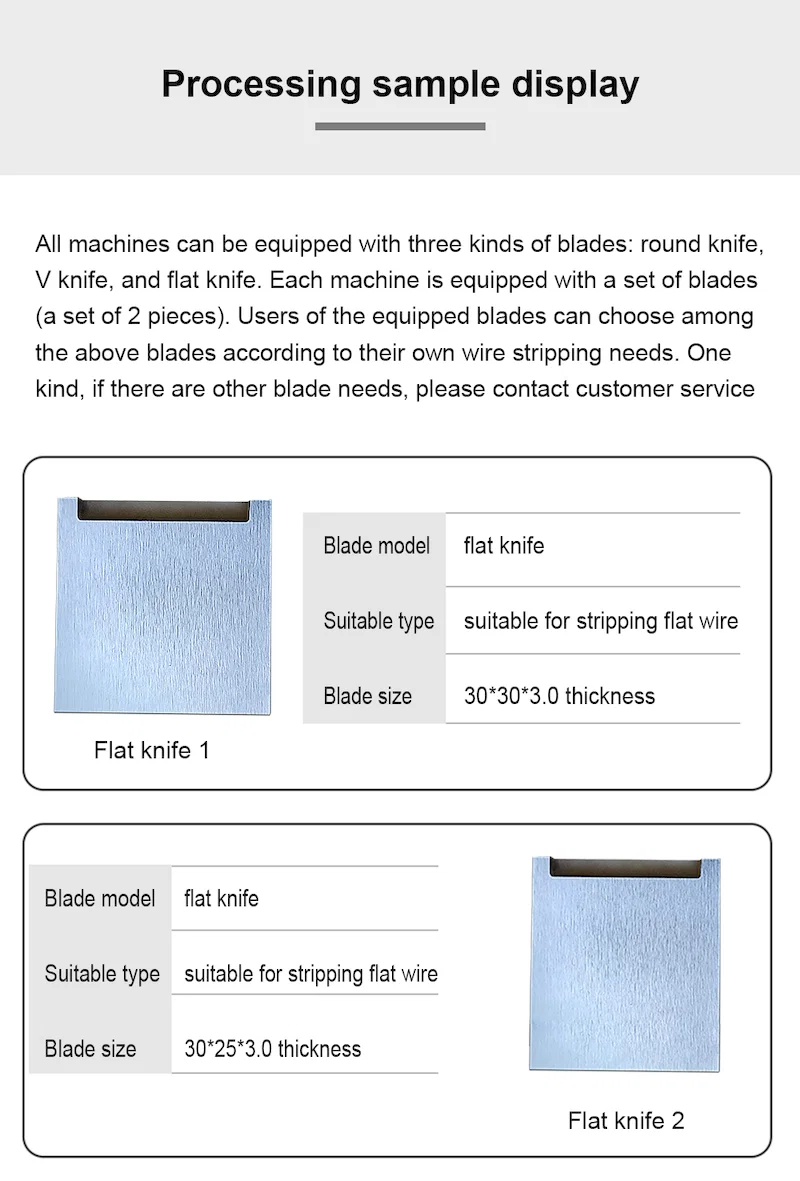

All machines can be equipped with three kinds of blades: round knife, V knife, and flat knife. Each machine is equipped with a set of blades ( a set of 2 pieces). Users of the equipped blades can choose among the above blades according to their own wire stripping needs, One kind, if there are other blade needs, please contact customer service.
Flat knife: suitable for stripping flat wire
V knife: suitable for wires with an outer diameter below 4.0mm or thicker wires outside the wire, and can be adjusted in size.
Cutter: Cut the head of the thread straight
Round knife: Suitable for all-round wires, the knife-edge size is 2.0-14mm, 2.0-10mm interval 0.5mm blade, 10.1-14mm interval 1.0mm blade. Need a round knife, please provide the outer diameter of the wire
Butt knife: thinner processing wire
Semi-circle butt knife: ordinary fork-type V knife and round knife peeling due to asymmetric force, when processing wire with thinner skin and longer stripping length the inner core will often be scratched, while the simple ordinary butt knife processing. Sometimes it is difficult to align the knife edge, which seriously affects production efficiency.
