CLS60-D
Macchina taglia e spela fili
Macchina automatica spellacavi a doppio strato WPM-YHT3
Modello WPM-YHT3Prezzo su richiesta1,463 views
Specifiche
- Numero modello
- WPM-YHT3
- Diametro filo
- 2-7mm
- Spellatura dei conduttori
- 2/3/4
- Lunghezza di taglio
- 0.1mm-99999.9mm
- Lunghezza spellatura testa strato esterno
- 1-120mm
- Lunghezza spellatura estremità strato esterno
- 1-50mm
- Lunghezza spellatura testa del conduttore
- 0.1-30mm
- Lunghezza spellatura estremità del conduttore
- 2-30mm
- Precisione spellatura
- 0.01mm
- Capacità
- 1000-2000 pcs/h (L=200mm)
- Materiale lama
- Imported tungsten steel/high-speed steel
- Pressione aria
- 0.8 Mpa
- Potenza
- AC110V/220V 50/60HZ 300W
- Dimensioni corpo
- 420mm*460mm*335mm
- Peso corpo
- 38kg

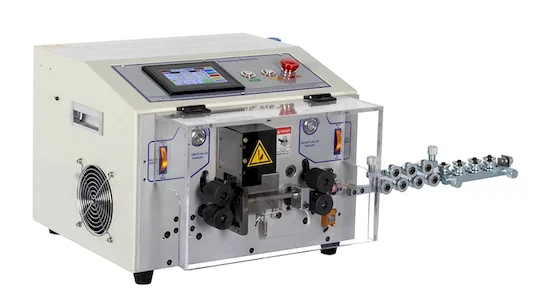

Double layer round sheath wire stripping cutting machine WPM-YH3
Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery
Function Wire cutting, double-end stripping, middle stripping
Wire out diameter 2-7mm
Strip cores 2/3/4
Cutting length 0.1mm-99999.9mm
Stripping length Outer layer: head: 1-120 mm tail: 1-50mm
Core line: head: 0.1-30mm tail: 2-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
The intermediate strip can be customized
Capacity 1000-2000 pcs/h (L = 200mm)
Blade material Imported tungsten steel/high-speed steel
Air Pressure: 0.8 Mpa
Power AC110V/220V 50/60HZ 300W
Body size 420mm*460mm*335mm
Body weight 38kg
Remark function Automatic entry/exit, timing start, jog adjustment
Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery
Function Wire cutting, double-end stripping, middle stripping
Wire out diameter 2-7mm
Strip cores 2/3/4
Cutting length 0.1mm-99999.9mm
Stripping length Outer layer: head: 1-120 mm tail: 1-50mm
Core line: head: 0.1-30mm tail: 2-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
The intermediate strip can be customized
Capacity 1000-2000 pcs/h (L = 200mm)
Blade material Imported tungsten steel/high-speed steel
Air Pressure: 0.8 Mpa
Power AC110V/220V 50/60HZ 300W
Body size 420mm*460mm*335mm
Body weight 38kg
Remark function Automatic entry/exit, timing start, jog adjustment

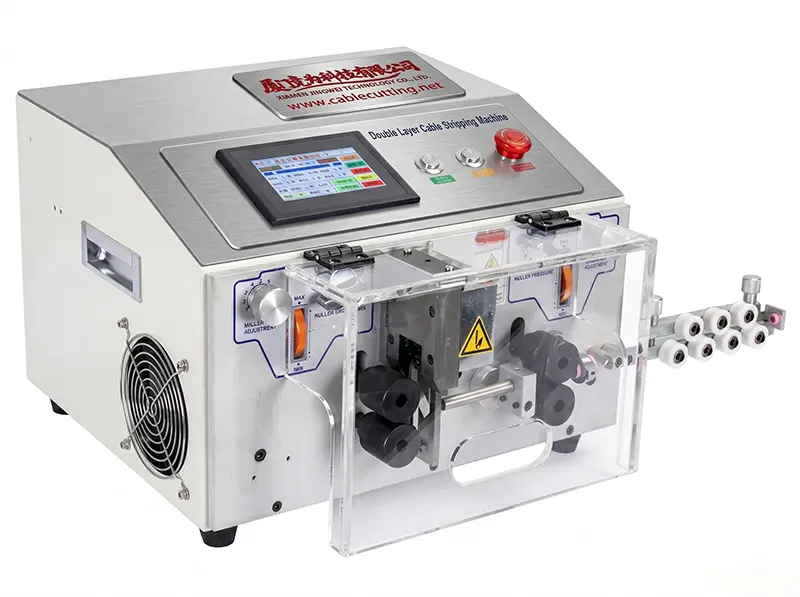

High Speed Double Layer Sheath Stripper WPM-YHT3
