NA-20S 空圧サイドフィード圧着アプリケーター - 高精度端子圧着機
型番 NA-20S-PNEUMATIC-SIDE-FEED-CRIMPING-APPLICATOR価格はお問い合わせください2,634 views
仕様
- 型番
- NA-20S
- 送り方式
- Side feeding
- ストローク
- 40mm
- シャットハイト
- 135.8mm
- 端子厚さ
- 1.5mm
- 電線サイズ
- 0.8-6mm² (AWG9-AWG30)
- 調整精度
- ±0.02mm
- 調整範囲
- Max. 3mm
- 材質
- Tool steel
- 加工工法
- Surface blackening
- 重量
- 4.5 KG
- 外形寸法
- L160 x H155 x W110 mm
NA-20S European pneumatic Crimping Applicator（Side feeding) Loose Terminal Applicator, Otp Terminal Crimping Machine Die, Otp Crimper Mould
With a pneumatic side feeding way. High precise and stable.
High precise pressure continuous adjustment plate design, easy design, easy to adjust.
Perfectly matching Komax, Tyco, Amp, Mecal, Schafer, Etco, Schleuniger, Molex, JST, South Korea, and various European and American brands of semi-automatic and fully automatic crimping machines.
Feeding way: Side feeding
Stoke: 40mm
Shut height: 135.8mm
The thickness of terminal: 1.5mm
Wire size: 0.8-6mm²（AWG9-AWG30)
Accuracy of adjustment: ±0.02mm
Scope of adjustment: Max. 3mm
Material: Tool steel
Processing Craft: surface blackening
Applicable Type: Semi-automatic & fully automatic crimping machine of brand Komax, Tyco, Amp, Mecal, Schafer, Etco, Schleuniger, Molex, JST.
Weight: 4.5 KG
Dimension(mm): L160 X H 155 X W110
With a pneumatic side feeding way. High precise and stable.
High precise pressure continuous adjustment plate design, easy design, easy to adjust.
Perfectly matching Komax, Tyco, Amp, Mecal, Schafer, Etco, Schleuniger, Molex, JST, South Korea, and various European and American brands of semi-automatic and fully automatic crimping machines.
Feeding way: Side feeding
Stoke: 40mm
Shut height: 135.8mm
The thickness of terminal: 1.5mm
Wire size: 0.8-6mm²（AWG9-AWG30)
Accuracy of adjustment: ±0.02mm
Scope of adjustment: Max. 3mm
Material: Tool steel
Processing Craft: surface blackening
Applicable Type: Semi-automatic & fully automatic crimping machine of brand Komax, Tyco, Amp, Mecal, Schafer, Etco, Schleuniger, Molex, JST.
Weight: 4.5 KG
Dimension(mm): L160 X H 155 X W110

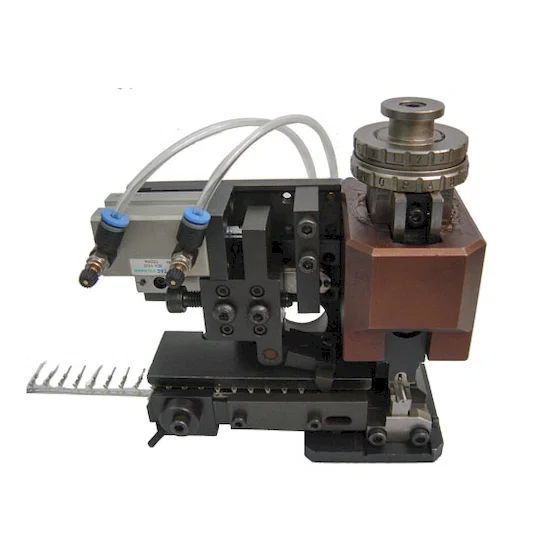

NA-20S Pneumatic Side Feed Crimping Applicator — Demo Video
