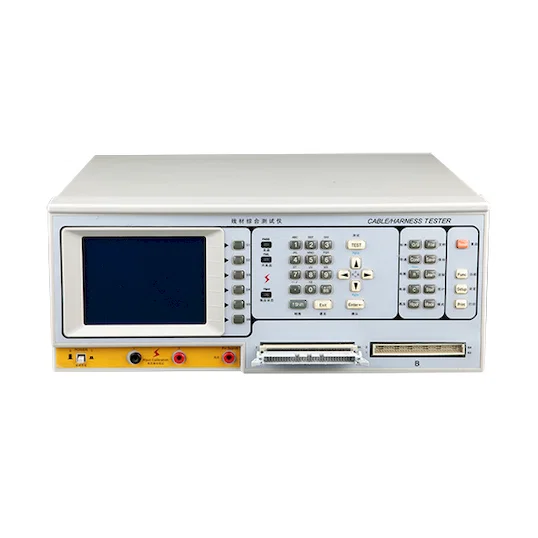

256點線束USB電纜測試儀 自動掃描間歇測試 WPM-8681

使用 WPM-8681 確保無可挑剔的電纜品質：多功能線束和 USB 電纜測試解決方案

介紹：

在當今互聯互通的世界中，線束和電纜的可靠性絕對至關重要。WPM-8681 線束和 USB 電纜測試儀介紹 一種精密且多功能的儀器，旨在提供 適用於各種電纜的全面測試和測量 元件。從錯綜複雜的汽車線束到精緻的USB電纜， WPM-8681 提供準確、可靠和高效的測試， 確保您的產品符合最高品質標準並執行 在他們的預期應用中完美無缺。這個強大的測試器是一個 製造商、品質控制部門和 任何需要徹底驗證電纜完整性的人。

主要特點和優勢：不折不扣的精度和多功能功能

這 WPM-8681 旨在提供卓越的性能和 使用者友好性，使其成為任何測試的寶貴補充 環境。以下是設置此線的功能的詳細資訊 線束和 USB 電纜測試儀分開：

• 廣泛的測試能力：多達 256 個測試點：WPM-8681 擁有令人印象深刻的 256 個測試點的最大容量。 這種廣泛的功能使您能夠測試複雜的電線 具有多種導體和連接的線束。無論您是 處理複雜的汽車電纜元件或多引腳數據 電纜，WPM-8681 提供您所需的測試能力 全面評估您的產品。這種可擴展性確保了測試人員 可根據您的測試要求進行擴展，並處理各種 駕馭複雜性。

• 自動效率：自動掃描和自動 Pin 搜尋功能：使用自動掃描和自動 Pin 搜尋功能最大限度地提高您的測試效率。這些智慧功能使測試過程自動化，顯著減少設置時間和作員工作量。自動掃描可快速循環顯示所有測試點，以識別潛在故障。 自動 Pin Search 自動識別引腳配置，無需手動 Pin 映射和簡化測試過程，特別是對於複雜的 或不熟悉的電纜類型。這些自動化功能轉化為 更快的測試週期和更高的生產率。

• 檢測間歇性故障：間歇性電導和開路/短路測試：使用間歇性電導測試和間歇性開路/短路測試功能，超越基本的連續性檢查，發現難以捉摸的間歇性問題 。間歇性故障，通常由連接鬆動引起 或髮際線骨折，眾所周知，很難檢測到 標準測試方法。WPM-8681 專為 識別這些間歇性問題，確保您的電纜 即使在壓力或振動下也能可靠地執行。這種先進的測試 功能顯著提高了產品可靠性，並降低了 現場故障的風險。

• 靈活的測試選項： 單端測試能力： WPM-8681 的單端測試功能提供了寶貴的靈活性。 此功能對於測試電纜或線束特別有用 只有一端易於接近，或用於特定測試 需要單端測量的場景。單端測試 擴展了 WPM-8681 的多功能性，使其能夠容納 更廣泛的測試應用和電纜配置。

• 使用者友好的介面： 大型 320×240 LCD 顯示幕： 得益於大型 320×240 LCD 顯示幕，作輕鬆清晰。 這種清晰而資訊豐富的顯示提供了一個使用者友好的介面 用於設置測試、查看結果和導航測試人員的 功能。大螢幕確保即使在繁忙時也能輕鬆閱讀 測試環境，最大限度地減少錯誤並最大限度地提高作員 效率。直觀的介面使 WPM-8681 易於訪問 各種技能水平的使用者。

• Customizable Testing Sequences: Full Programming Sequence Test: Tailor your testing process to specific cable requirements with the Full Programming Sequence Test feature. This powerful capability allows you to create and store custom test sequences, enabling you to define specific test parameters, thresholds, and test point orders. This programmability provides exceptional flexibility and ensures that the WPM-8681 can be adapted to test a wide variety of cable types and meet unique testing protocols. Customizable test sequences ensure thorough and targeted testing for diverse applications.

• Versatile Integration: Versatile I/O Ports for Application Expansion: Extend the functionality of the WPM-8681 and integrate it into automated testing systems with its Versatile I/O Ports. These ports provide connectivity for external devices, allowing for integration with automated test fixtures, robotic handling systems, or data logging equipment. The versatile I/O ports enable seamless integration into larger production or quality control workflows, enhancing automation and data management capabilities.

• Comprehensive Data Management: Statistics and Print Function: Maintain detailed records of your testing process with the Statistics and Print Function. The WPM-8681 can collect and display statistical data on test results, providing valuable insights into production trends and quality performance. The Print Function allows you to generate hard-copy reports of test results, facilitating documentation, traceability, and quality control reporting. These data management features ensure comprehensive record-keeping and facilitate quality analysis.

Applicable Cable Types:

The WPM-8681 is designed for testing a wide variety of wire harnesses and cables, including but not limited to:

• Automotive Cables: Ensuring the reliability of complex automotive wiring systems.

• Audio Cables: Verifying signal integrity and continuity in audio interconnects.

• Power Cables: Testing for shorts, opens, and proper conductance in power delivery cables.

• Network Cables (Ethernet Cables): Confirming proper wiring and connectivity for data transmission.

• Telephone Cables: Testing continuity and correct wiring for telecommunication applications.

• USB Cables (All Types): Verifying power and data line integrity in USB cables.

• Video Cables (HDMI, VGA, DisplayPort, etc.): Ensuring signal path integrity for high-definition video transmission.

• Custom Wire Harnesses: Adaptable for testing a wide range of custom-designed wire harnesses.

規格：

Applications:

The WPM-8681 Wire Harness and USB Cable Tester is ideal for a wide range of applications across various industries:

• Wire Harness Manufacturing: Quality control and final testing of wire harnesses for various applications.

• Cable Assembly Production: Ensuring the integrity and performance of manufactured cable assemblies.

• Automotive Electronics Manufacturing: Testing automotive wire harnesses for safety and reliability.

• Consumer Electronics Production: Verifying the quality of cables used in electronic devices.

• Telecommunications Equipment Manufacturing: Testing cables for communication infrastructure.

• Quality Control Departments: Incoming and outgoing inspection of wire harnesses and cables.

• Research and Development: Cable and harness prototyping and performance evaluation.

Conclusion:

The WPM-8681 Wire Harness and USB Cable Tester is a powerful, versatile, and user-friendly solution for ensuring the quality and reliability of your cable assemblies. Its comprehensive feature set, including extensive test points, automated functions, intermittent fault detection, and data management capabilities, makes it an invaluable tool for manufacturers and quality control professionals. Invest in the WPM-8681 and gain the confidence that your wire harnesses and cables will perform flawlessly, meeting the demanding requirements of today's interconnected world.
